PR400-556
Automatic Charger Clipping & Bandolier Packing System

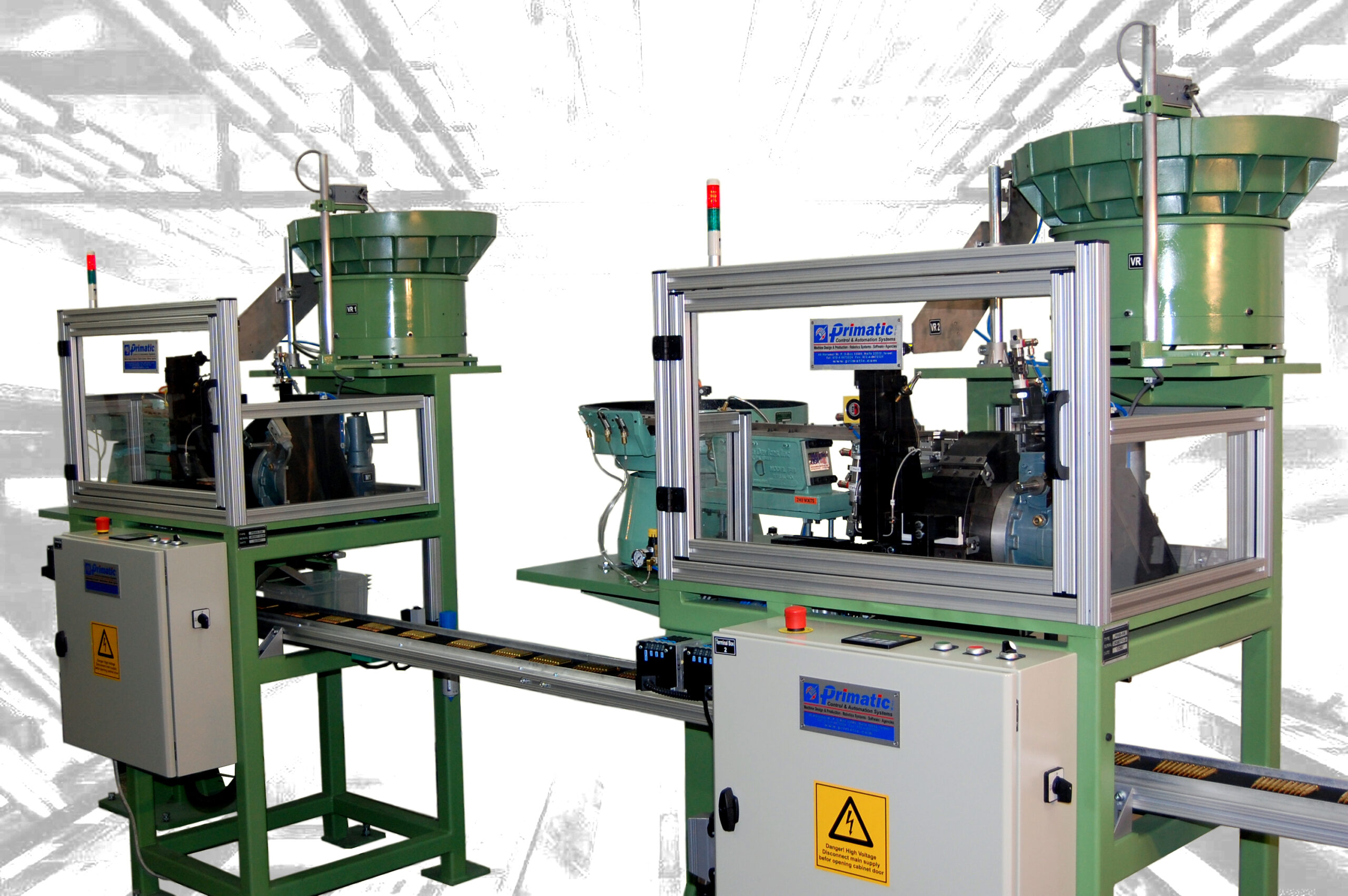

The PR400-556 is an automatic charger clipping and bandolier packing system designed for high-speed 5.56mm ammunition packaging. Built as two specialized machines configured side-by-side over a takeoff conveyor belt, the system automatically indexes charger clips, loads them with a 10-round configuration and formats them into 5-pouch bandoliers.
Key Specifications
Output rate
250 PPM
Clip type
Metal / plastic charger clips
Drum system
8-station rotary drum
Clip configuration
10 rounds per charger clip
Bandolier format
5-pouch bandolier
Package capacity
150 rounds per bandolier package
Optional inspection
Color-inspection vision cameras
Custom configuration available upon request
Product Advantages
High-Speed Packaging Flow
Operates at 250 PPM, supporting efficient charger clipping and bandolier packing in one integrated flow.
Dual-Machine Configuration
Two specialized machines are configured side-by-side over a takeoff conveyor belt for a continuous production process.
Compact Footprint8-Station Rotary Drum

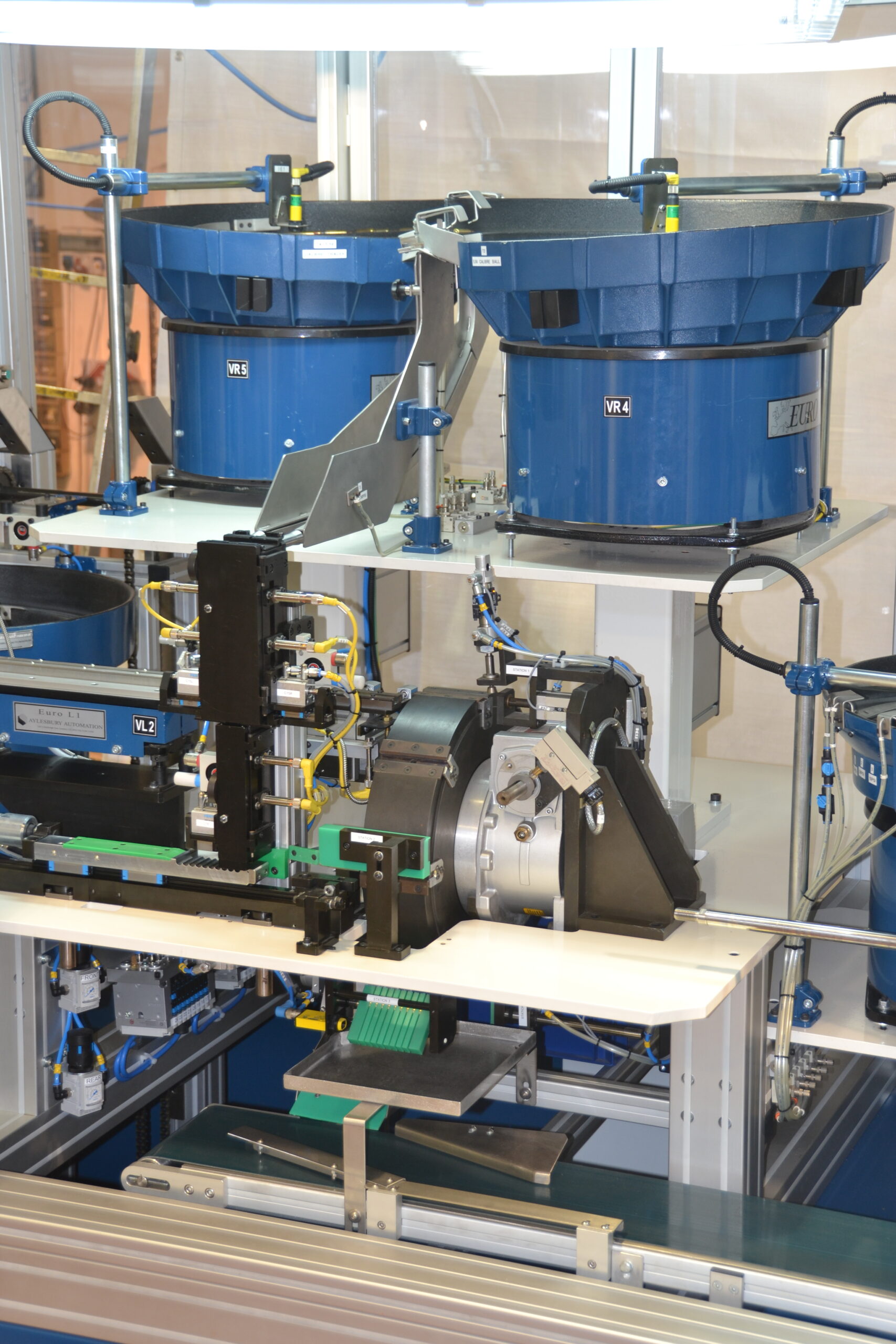

Automatically indexes metal or plastic charger clips on an 8-station rotary drum.
Optional Vision Inspection
Color-inspection vision cameras can be added to support automated quality control.
Technical Details
Machine type
Semi-automatic linking machine
Supported calibers
5.56mm, 7.62mm, .50 Cal / 12.7mm
Link types
M27, M13, M9
Output rate
Up to 80 / 75 / 50 PPM
Interface
PLC-based 6" HMI touch screen
Dimensions
Zero consumables
Weight
Live rounds, blanks, tracer cartridges
Weight
Live rounds, blanks, tracer cartridges
Get in Touch
Primatic designs and adapts machines according to caliber, production flow and factory requirements.
