Continuous High-Speed Rotary Drum Linking Machine

PR200-556 / PR200-762 / PR200-050

Continuous High-Speed Rotary Drum Linking Machine

The PR200 series is designed for high-volume ammunition production lines where speed, consistency and Overall Equipment Effectiveness are critical. Built around a continuous-motion rotary drum architecture, the PR200 eliminates the stop-and-start limitations of standard linear systems and delivers smooth, industrial-scale linking performance.

Key Specifications

Model

Caliber

Links

Rate

PR200-556

5.56mm

M27

140 PPM

PR200-762

7.62mm

M13

120 PPM

PR200-050

.50 Cal / 12.7mm

65 PPM

Custom configuration available upon request

Overview

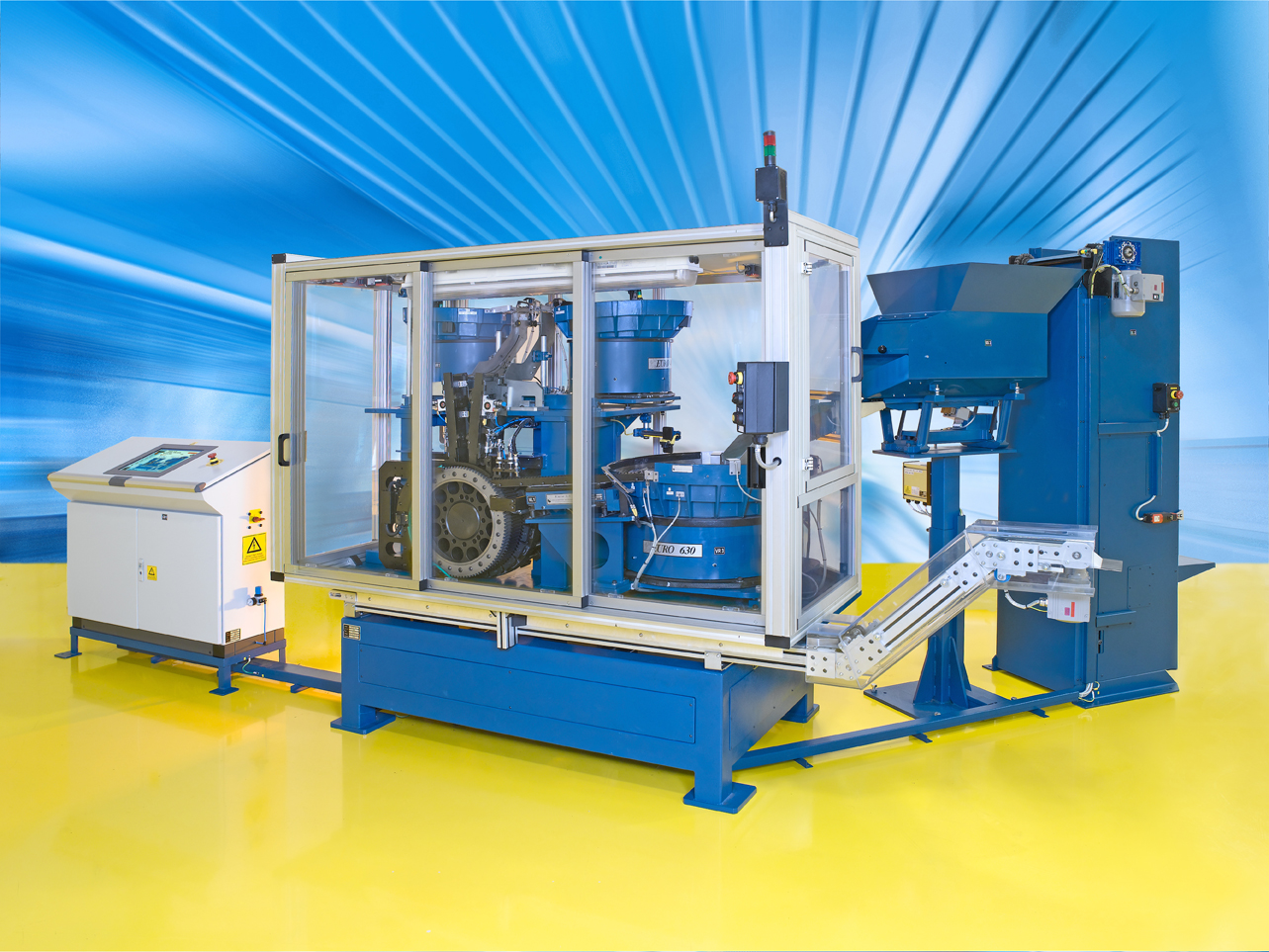

The PR200 is a continuous high-speed rotary drum linking machine engineered for manufacturers who need reliable industrial-volume output without compromising cartridge alignment, operator safety or production consistency.

Unlike standard linear systems, the PR200 is built around a continuous-motion assembly wheel that keeps the process moving smoothly and reduces mechanical bottlenecks. This makes it an ideal solution for production environments focused on increasing throughput, improving OEE and maintaining stable long-shift operation.

Available in dedicated configurations for 5.56mm, 7.62mm and .50 Cal, the PR200 delivers high-speed performance while maintaining controlled cartridge handling throughout the linking process.

Product Advantages

Continuous Motion Architecture

The PR200 removes the stop-and-start bottlenecks of standard linear systems, enabling smoother operation and higher production efficiency.

High-Speed Industrial Output

With output rates of up to 140 PPM for 5.56mm, 120 PPM for 7.62mm and 65 PPM for .50 Cal, the PR200 is built for demanding production environments.

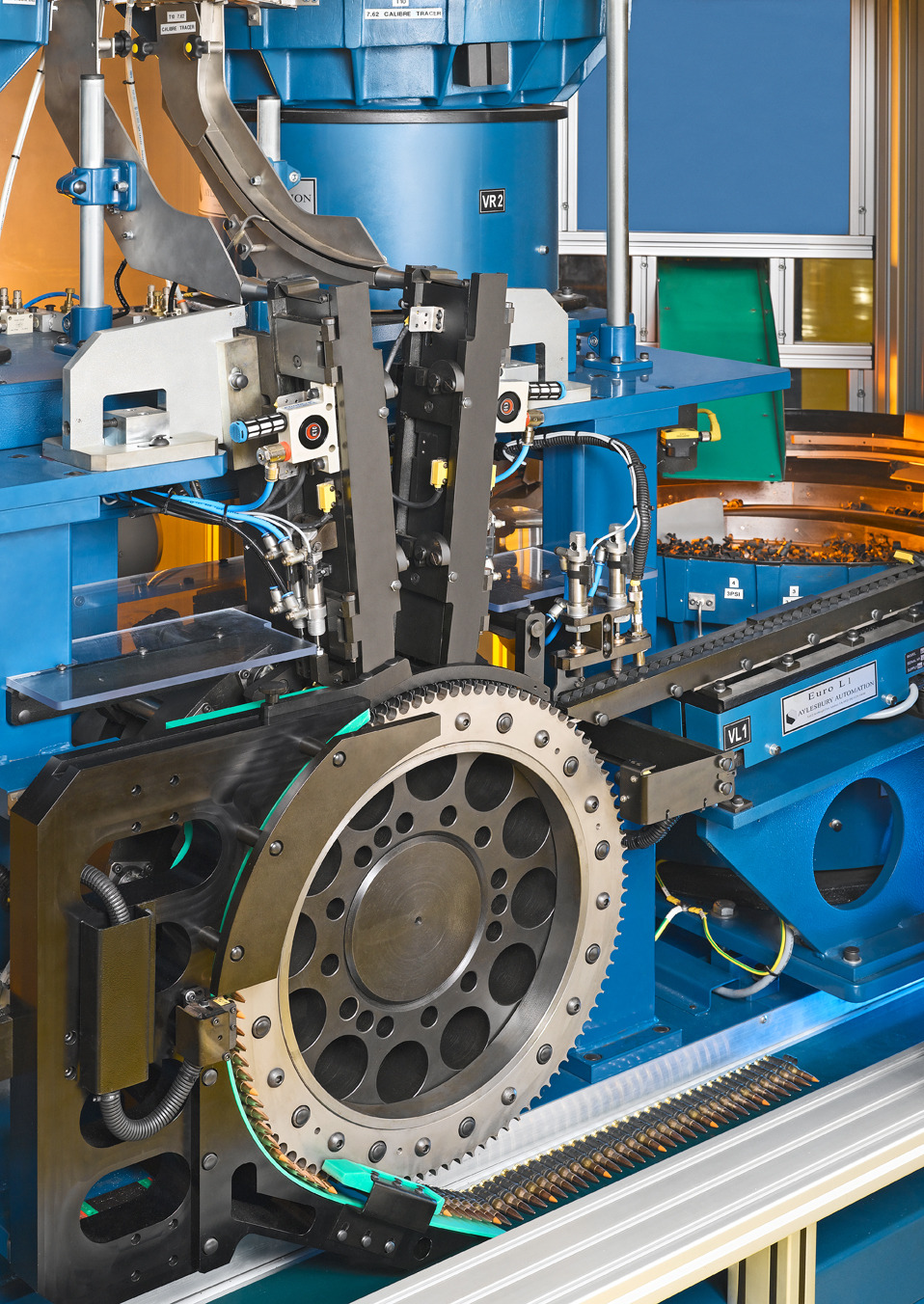

Proprietary Rotary Drum Technology

The machine uses a continuously rotating assembly wheel with custom-machined profile grooves that match the exact geometry of the cartridge.

Integrated Safety & QA

An electronic inspection barrier checks tracer presence and correct cartridge alignment before final link insertion, while the assembly hub is mechanically shielded for operator safety.
